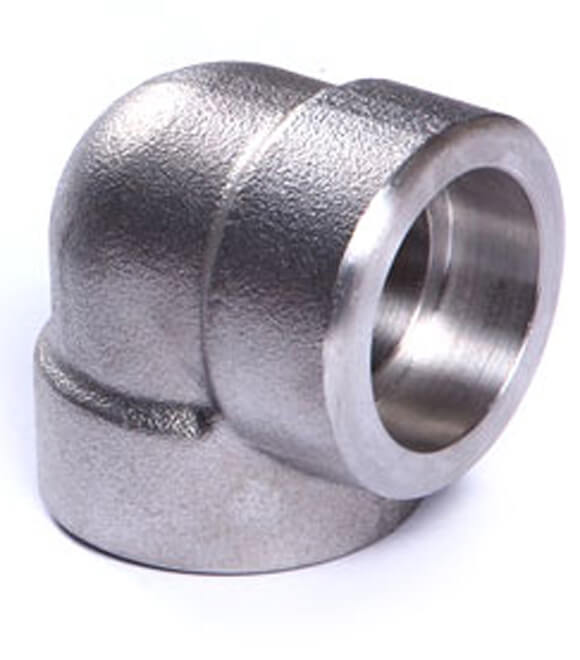

We are a manufacturer, supplier, and exporter of Super Duplex Steel S32760 Socket Weld Fittings (UNS S32760) in a variety of sizes, specifications, and standards at competitive market prices. Super Duplex Steel S32760 Socket Weld Fittings are available in stock sizes ranging from 1/8″ NB to 4″ NB in several schedules, including Socketweld Plug, Socketweld Equal Tee, Super Duplex Stainless Steel S32760 Socketweld Union, Socketweld Elbow, Cross, and Union. If you do not find the size you are searching for, or if you require another type of socketweld fittings, please contact us.
In accordance with solution annealed and liquid quenched wrought Super Duplex S32760 Forged Socket Weld Cap Fittings are appropriate for use at temperatures up to 450 degrees Fahrenheit (232 degrees Celsius) in sour environments in oil and gas production, provided the partial pressure of hydrogen sulphide does not exceed. However, Super Duplex UNS S32760 Forged Socket Weld Fittings are not completely stain-resistant in low-oxygen, high-salinity, or poor-air-circulation situations.
Specifications | ASTM A182 / ASME SA182 |
---|---|
Size | 1/8″ NB to 4″ NB Socket Weld |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Class | 3000/ 6000/ 9000lbs |
From | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees. |
STANDARD | WERKSTOFF NR. | UNS |
Super Duplex S32760 | 1.4410 | S32760 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Cu |
S32760 | 0.030max | 1.20 max | 0.80 max | 0.035max | 0.020 max | 24.0-26.0 | 3.0-5.0 | 6.0-8.0 | 0.24/0.32 | 0.50 |
Grades | Density (g/cm 3) | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
S32760 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15% |
