Inconel 800 Socketweld Fittings

UNS N08800 / N08810 / N08811 Socketweld Fittings, DIN 1.4876 / 1.4958 / 1.4859 Socketweld Fittings

We are Manufacture, Suplier & Export of ASTM B564 UNS N08811 Incoloy 800 / 800H / 800HT Socket Weld Forged Fittings known for competitive pricing & require minimum time to deliver ASTM B564 UNS N08811 800 / 800H / 800HT Socket Forged Fittings at you doorstep. ASTM B564 UNS N08811 Incoloy 800 Socket Weld Forged Fittings are electropolished to remove free iron and to provide a high-quality finish & to ensure our forged steel fittings have the highest degree of corrosion resistance. These Alloy UNS N08800 Socket Weld Forged Elbow are widely used in heat exchangers and other piping systems of industries. These Incoloy 800 Socket Weld Fittings have great features and attributes that ensure to withstand in high-temperature conditions.

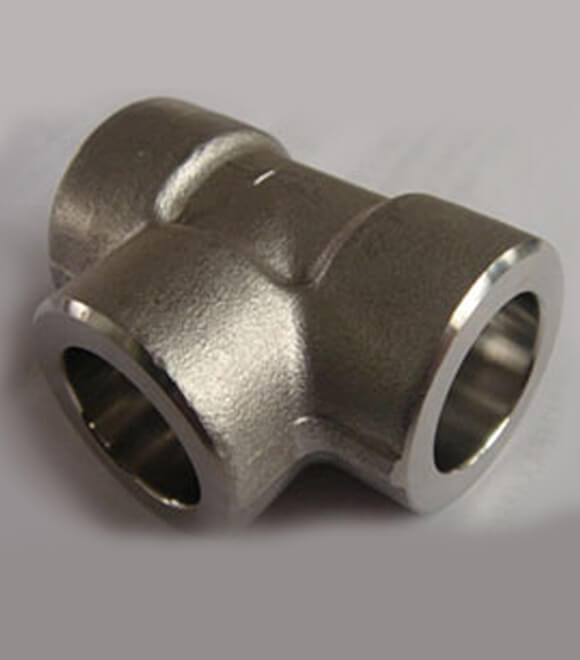

Our Incoloy 800H Socket weld Fittings are made in compliance with the international quality standards and by making use of the best quality inconel alloy. To prevent the possibility of grain boundary cracking due to stress relaxation of Incoloy 800H forged socket weld tee fittings in applications above 1,000 degrees F, the weld may be heated to 1,650 degrees F for approximately one hour per inch or a minimum of 30 minutes, then air cooled.

Specification Of Incoloy 800 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 – X8NiCrAlTi32-21

Chemical Composition

Grade C Mn Si Al S Cr Cu Ni Fe
Incoloy 800 0.10 max 1.50 max 1 max 0.15 – 0.60 0.015 max 19.0-23.0 0.75 max 30.0-35.0 39.5 min
Incoloy 800H 0.05 – 0.10 1.50 max 1 max 0.15 – 0.60 0.015 max 19.0-23.0 0.75 max 30.0-35.0 39.5 min
Incoloy 800HT 0.06 – 0.10 1.50 max 1 max 0.15 – 0.60 0.015 max 19.0-23.0 0.75 max 30.0-35.0 39.5 min

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
