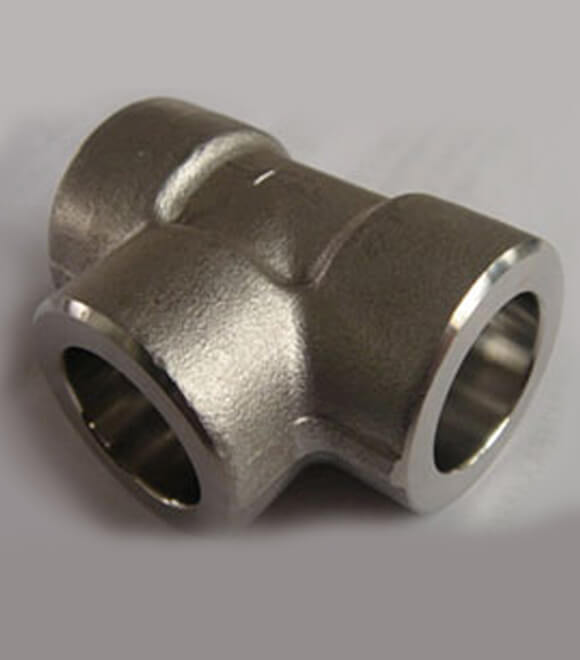

Super Duplex Steel S32750 Socketweld Fittings

UNS S32750 Socketweld Fittings, DIN 1.4410 Socketweld Fittings

We manufacture, supply, and export stainless steel UNS S32750 Socket Weld Forged Fittings, which are active and accelerate corrosion by allowing more iron oxide to develop. Forged Socket Weld Fittings is known for its corrosion resistance and is commonly used in food processing and cutlery, among other applications. Super Duplex Steel UNS S32750 Socket Weld Forged Socket Weld Fittings have high quantities of chromium (25%), molybdenum (4%), and nitrogen, which provide good resistance to pitting, crevices, and overall corrosion.

Super Duplex Stainless Steel UNS S32750 Socket Weld Forged Fittings are highly resistant to pitting, crevice corrosion, and stress corrosion cracking. Our Super Duplex S32750 Forged Socket Weld Tee Fittings show that, in contrast to conventional chloride-induced stress corrosion cracking, ferritic stainless steels are more stress corrosion cracking than austenitic steels.

Specification Of Super Duplex Steel S32750 Socket Weld Fittings

Specifications ASTM A182 / ASME SA182
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Super Duplex S32750 1.4410 S32750

Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Cu
S32750 0.030max  1.20 max 0.80 max 0.035max 0.020 max 24.0-26.0  3.0-5.0  6.0-8.0 0.24/0.32 0.50

Mechanical Properties

Grades Density (g/cm 3) Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
S32750 7.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15%
