Nickel Alloy 200 Socketweld Fittings

UNS N02200 Socketweld Fittings, DIN 2.4066 Socketweld Fittings

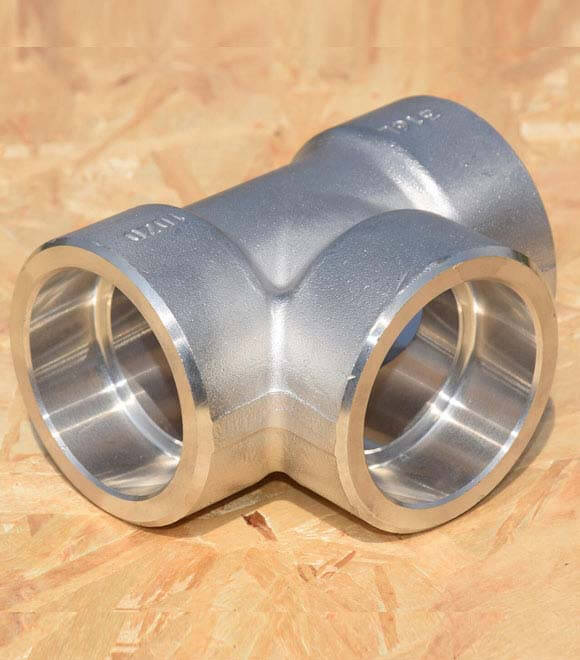

We are Manufacture, Suplier & Export of Nickel Alloy 200 Socket Weld Forged Pipe Fittings and Nickel Alloy 200 Socket Weld Forged Pipe Fittings that are being designed as per the national and international standard quality of raw materials and thus making sure of their durability and high quality. Nickel Alloy 200 Socket Weld Forged Threaded Fittings is ferromagnetic and has relatively low electrical resistivity. This combination of properties has allowed its use in a wide variety of applications. Nickel 201 Forged Socket Weld Fittings (UNS N02200) has a low annealed hardness and very low work-hardening rate. We make 200 Nickel alloy Socket Weld Forged Fittings, Nickel Forged Elbow, Nickel Forged cross, Nickel Forged stub closes, Nickel Forged twist, Nickel Forged short sweep elbow, Nickel Forged Tee and all shapes and size in Nickel steel material.

Nickel 200 Forged Socket Weld Cap is suitable for aircraft, furnace and chemical process components, honeycombs, and gas turbine combustion section components. Nickel 200 Forged Socket Weld Coupling can also endure sulfuric, acetic, formic, and phosphoric acids, as well as non-oxidizing environments. Nickel 200 Forged Socket Weld Cross features a unique chemistry that achieves significantly higher thermal stability than its predecessors.

Specification Of Nickel Alloy 200 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2

Chemical Composition

Grade C Mn Si P S Cu Mo Ni Fe
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 99.00 min 0.40 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %
