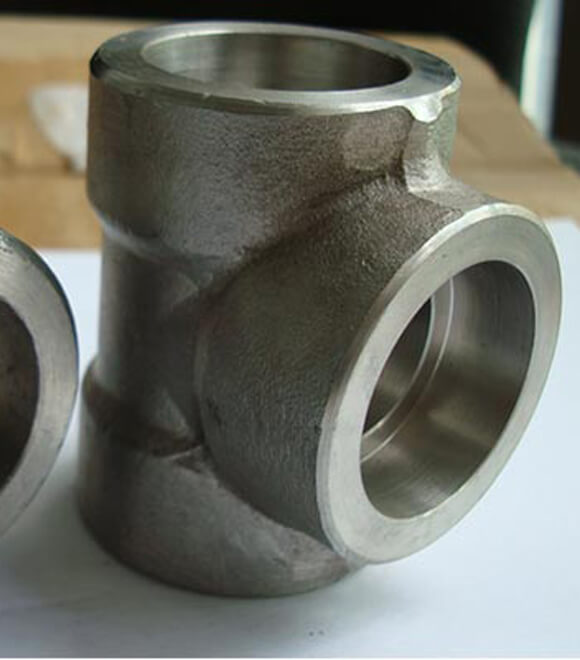

Inconel 625 Socketweld Fittings

UNS N06625 Socketweld Fittings, DIN 2.4856 Socketweld Fittings

We are Manufacture, Suplier & Export of Inconel UNS N06625 Forged Socket Weld Pipe Elbows and Other Quality Products that meet and exceed customer`s specific requirements and thus ensure complete satisfaction. We are capable of providing a vast range of materials like Inconel 625 Socket Weld Hexagonal Plug, Inconel 625 Socket Weld Pipe Fittings & Inconel 625 Socket Weld Pipe Cross from stock, to suit your needs. Our offer Inconel 625 Socket weld Cross Forged Fittings is available in various sizes and thicknesses to meet all customer centric requirements, Alloy 625 Socket weld Forged Coupling are suitable for usage in aqueous and low-temperature environments.

We have made a place for ourselves in the market as a trusted exporter of Inconel 625 Socket Weld Fittings in India. Our range includes full tees, eccentric reducers, concentric reducers, equal tees, unequal tees, etc. These Inconel 625 forged socket weld caps have withstood many corrosive environments and also exhibit excellent weldability and are commonly used for welding AL-6XN.

Specification Of Inconel 625 Socket Weld Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Socket Weld
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 3000/ 6000/ 9000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb

Chemical Composition

Grade C Mn Si P S Cr Cu Ni Fe
Inconel 625 0.10 max 0.50 max 0.5 max 0.015 max 20.0 – 23.0 58 min 5.0 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
