Monel K500 Fasteners

UNS N05500 Fasteners, DIN 2.4375 Fasteners

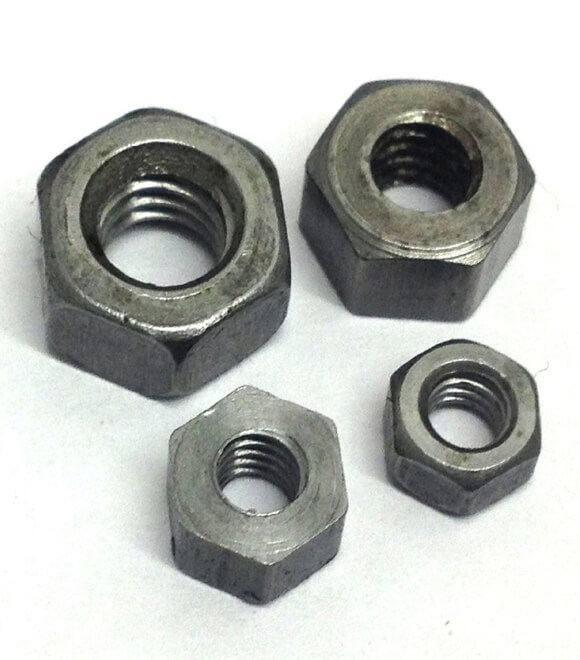

We manufacture, supply, and export Monel Alloy K500 Fasteners (Monel K500 Fasteners), which are fully non-magnetic and utilized for anchor cable on minesweepers and housings for magnetic-field measurement equipment. Meanwhile, we also offer this Monel Alloy K500 Fasteners (also known as UNS N05500 Fasteners) in customizable thicknesses and sizes based on specific specifications. We are a global supplier of fasteners, having shipped to over 50 countries worldwide. We are PED approved Supplier, Manufacturer, Stockist and Exporter of high quality Monel K500 Fasteners in forms like Monel K500 Fasteners Nuts, Monel K500 Fasteners Bolts, Monel K500 Fasteners Screws, Monel K500 Fasteners Washers. Our Monel K-500 Fasteners are widely used in number of industries such as aerospace, defense, automotive, petrochemical, waste processing, marine and pharmaceutical sectors. Buy custom Monel K-500 Fasteners created with Monel K-500 in shortest delivery time. our Monel K-500 Fasteners comes with NACE 3.1 Certification.

Monel K500 is a nickel-copper alloy with the same corrosion resistance and characteristics as the Monel 500. The Monel K-500 has a greater strength and hardness then the 400, as a result of added aluminum and titanium.

Specification Of Monel K500 Fasteners

Standard ASTM F468 / A194, ASME SF468 / SA194
Size M 02 to M 33
Length 3 mm to 200 mm
Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • BS en iso 3506

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer
  • Up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia M6 to M64 (1/4" - 2.5")
Length 12 MM - 500 MM (Upto 20 Inch)
IS 1363, 1364
DIN 931, 933
ISO ISO 3506
Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing: Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Monel K500 N05500 2.4375 – – – – –

Chemical Composition

Monel K500 Ni C Al Mn Si Fe Cu S Ti Cr
63.0 min 0.25 max 2.3 – 3.15 1.5 max 0.5 max 05 – 2 27.0 – 33.0 0.010 max 0.35 – 0.85 –

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.44 g/cm3 1350 °C (2460 °F) Psi – 1,15,000 , MPa – 790 Psi – 1,60,000 , MPa – 1100 20 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
