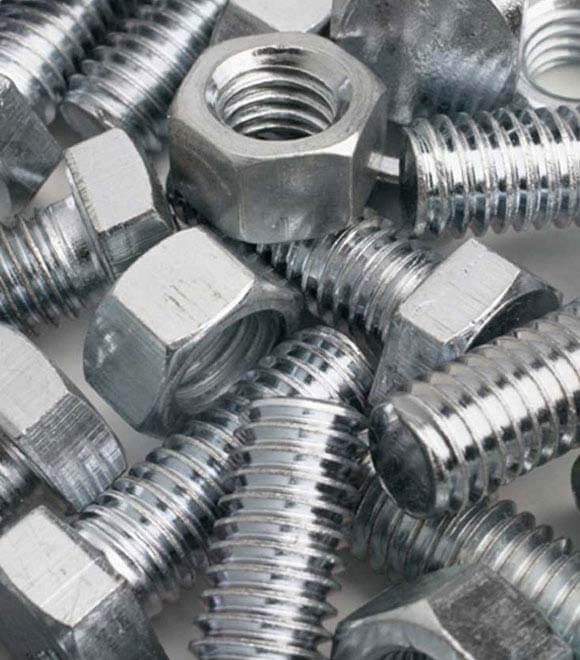

Hastelloy X Fasteners

UNS N06002 Fasteners, DIN 2.4665 Fasteners

We manufacture, supply, and export Hastelloy X fasteners (such as bolts, set screws, stud bolts, nuts, and washers) to suit our clients' high requirements for essential applications in hostile environments. Whether it's offshore (buoyancy and petrochemical), seawater, pump, valve, or nuclear, the requirement for excellent service and supply is never-ending. Hastelloy X Bolt (also known as Haynes Hastelloy X) is an austenitic nickel base alloy with roughly 22 percent chromium for excellent resistance to oxidation at high temperatures. In addition, Hastelloy X eye bolts, which are solid solution reinforced, provide outstanding strength at high temperatures. Hastelloy X U bolts, flat head screws, machine screws, hex cap screws, socket head cap screws, and hex nuts, among others.

Hastelloy X Fasteners, such as Alloy X Industrial Nuts, Alloy X Industrial Bolts, and Alloy X Industrial Screws, are machinable and weldable with or without filler metals. We provide this Hastelloy X Fastener in a variety of specifications to meet the different needs of our customers.

Specification Of Hastelloy X Fasteners

Standard ASTM B572, ASME SB572
Size M 02 to M 33
Length 3 mm to 200 mm
Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • BS en iso 3506

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards

Scope of Manufacturer
  • Up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia M6 to M64 (1/4" - 2.5")
Length 12 MM - 500 MM (Upto 20 Inch)
IS 1363, 1364
DIN 931, 933
ISO ISO 3506
Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing: Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

Equivalent Grades

STANDARD UNS WERKSTOFF NR.
Hastelloy X N06002 2.4665

Chemical Composition

Hastelloy X Ni C Mo Mn Si Fe Cu Ti Co Cr
Balance 0.05-0.15 8.0-10.0 1.0 max 1.0 max 17.0-20.0 0.50 max 0.15 max 0.5-2.5 20.5-23.0
