Inconel 925 Fasteners

UNS N09925 Fasteners, Inconel 925 Fasteners

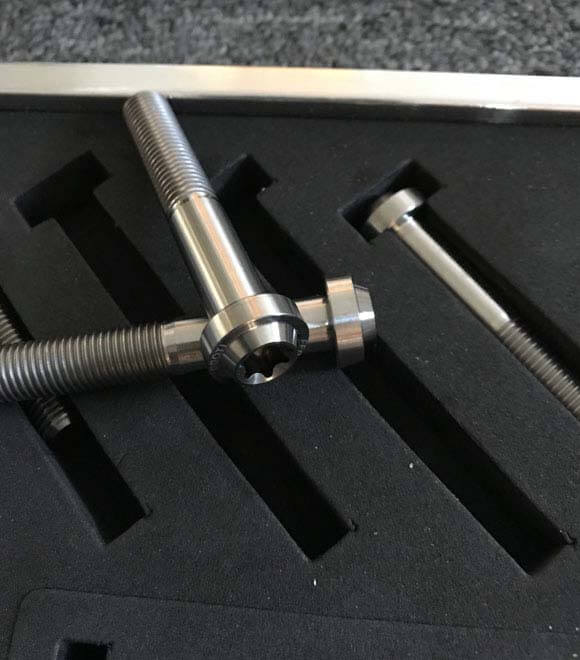

We are Manufacture, Suplier & Export of Incoloy 925 Fasteners which is a precipitation-hardenable nickel-iron-chromium alloy with additions of aluminum, copper, molybdenum and titanium to increase its resistance to corrosive media. This nickel-iron-chromium alloy can be strengthened by solution hardening, quenching and precipitation hardening. Incoloy 925 bolts can be used in environments with high temperatures and mechanical stresses as well as where high surface stability is required. The product differentiation is based on the superior finish of Incoloy 925 screws with minimal edge roughness.

Terminals for welding and wire making are perfect in large scale projects in the oil and gas industry for long product life. Incoloy 925 screws are made from an alloy containing nickel as the base component containing chromium and molybdenum with additions of copper and titanium. Incoloy 925 Bolts have excellent corrosion resistance to specific chemical attacks, as well as high temperature resistance.

Specification Of Inconel Alloy 925 Fasteners

Standard ASTM 805, ASME S805
Size M 02 to M 33
Length 3 mm to 200 mm
Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: DIN, ISO, JIS, GB, IS, BS, ASTM, ANSI – American National Standards Institute
  • ANSI B 18.2.4 2M
  • ANSI B 28.2.4 1M
  • Stud Bolt length are defined in ASME B16.5 standard
  • Hex nuts are defined in ASME B18.2.2
  • ASME B18.5
  • BS en iso 3506

DIN: DIN 931, DIN 933, DIN 934, DIN 970

UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF

ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards
Scope of Manufacturer
  • Up to M36 / 1-1/2” Dia, up to 1100mm lg
  • CNC Machined Fasteners, up to M100 / 4” Dia, up to 1500mm lg
Dia M6 to M64 (1/4" - 2.5")
Length 12 MM - 500 MM (Upto 20 Inch)
IS 1363, 1364
DIN 931, 933
ISO ISO 3506
Form of: Hex, Square, Round, Threading as per Gauge Etc.
Head Drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1
Finishing: Zinc (yellow, white, blue, black), black oxide, , Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Passivated, Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Mechanically Applied coating and some special one like DACROMET
Production Process M2-M24: Cold Froging, hot forging M24-M100, , machining and CNC for Customized connecting element
Types Nuts, Bolts, Screws, Socket Screw, Sockets, Studs, Screw, Nut, Spring Washers, Hex Set Screw, Socket Hexagon Head Screw, Cap Screw, Wing Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Studs, Anchors, Hex Nut,Marine Anchors, Hexagon Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Anchor Bolt, U- Bolts, J Bolts, T-Head Bolts, Mushroom Head Square Neck Bolts, Eye Bolt, Foundation Bolts, Structural Bolts

Chemical Composition

Grade C Mn Si Fe S Cr Cu Ni
925 min. – – – 22.0 – 19.5 1.5 42.0
max. – – – – – 22.5 3.0 46.0
