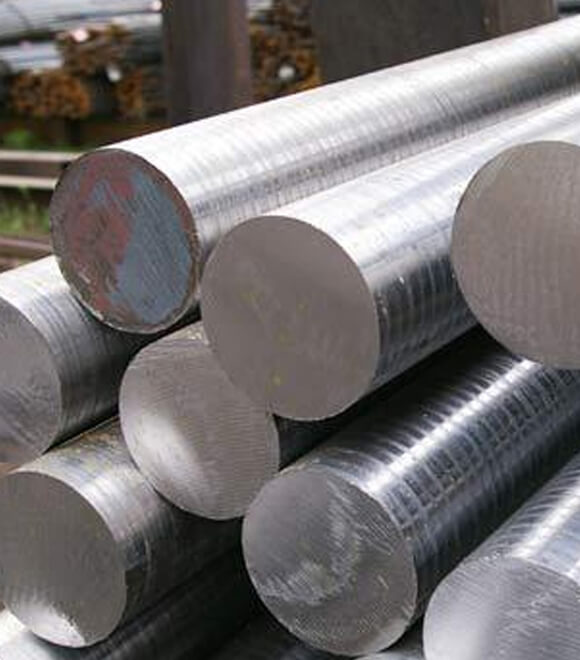

Super Duplex S32750 Round Bars
UNS S32750 Round Bar, DIN 1.4410 Rods
We are a manufacturer, supplier, and exporter of Super Duplex Steel UNS S32750 Round Bars for our global clients at reasonable prices. Super Duplex Steel UNS S32750 Bars are utilized in the oil and gas, chemical processing, and power sectors. Super Duplex Stainless Steel UNS S32750 Round Bars are excellent for usage in harsh situations. Super Duplex Stainless Steel UNS S32750 Round Bars are a low-cost option for usage in demanding situations. Super Duplex Stainless Steel UNS S32750 Round Bars combine the advantages of both austenitic and ferritic grades. Super Duplex Steel UNS S32750 Bars are highly resistant to pitting, corrosion, and chloride-rich conditions.
The duplex microstructure offers this grade high strength Super Duplex UNS S32750 Bars a lower coefficient of thermal expansion and greater heat conductivity than austenitic steels, making it acceptable for working temperatures up to 300°C. Super Duplex Alloy UNS S32750 Round Bars are utilized in sour service and have received ASME approval for pressure vessel applications.
Specification Of Super Duplex S32750 Round Bars
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Hex Bar size | 2-100mm A/F |
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Equivalent Grades
| STANDARD | UNS | WNR. |
|---|---|---|
| Super Duplex S32750 | S32750 | 1.4410 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 |
