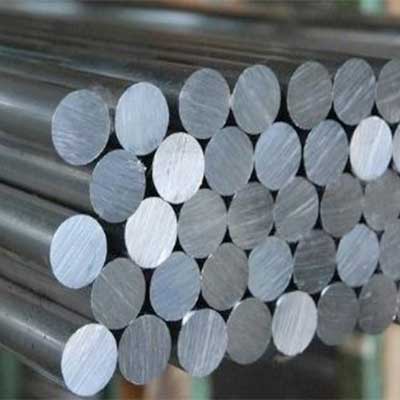

We are Manufacturer, Supplier & Exporter of Monel 400 Bar (UNS N04400), Monel 400 Rods in various sizes, dimensions and standards at market leading prices. These Round Bars are available from Stock 5 mm To 500 mm in various types as Monel 400 Forged Bar, Monel 400 Hex Bar, Monel 400 Bright Bar, Flat Bar, Hexagonal Bar, Threaded Bar. If you do not find the size you are looking for or if you need Other Type of Round Bars please do contact us [email protected] .
Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
---|---|
Standard | ASTM B164, ASME SB164 |
Hex Bar size | 2-100mm A/F |
Round bar size | Diameter: 3-~800mm |
Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Square bar size | 4 to 100mm |
Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Rectangular Bars Section | 3.0 to 12.0mm thickness |
Threaded Bar Billet Size | 1/2 to 495mm Diameter |
Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
Condition | Hardened & tempered, annealed |
Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
Processing | Bar cutting to 650mm |
Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | BS | AFNOR | EN |
Monel 400 | 2.4360 | N04400 | NW 4400 | МНЖМц 28-2,5-1,5 | NA 13 | NU-30M | NiCu30Fe |
Grade | C | Mn | Si | Cu | Fe | Ni | S |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
