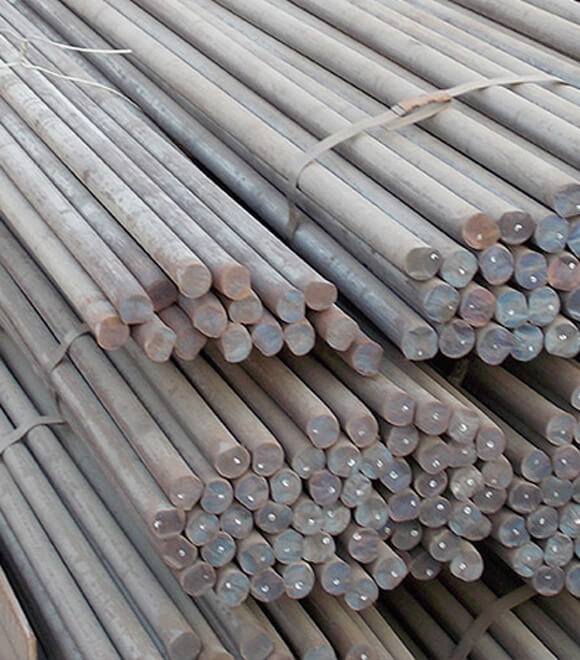

Duplex S32205 Round Bars
UNS S32205 Round Bar, DIN 1.4462 Rods
We are a manufacturer, supplier, and exporter of Duplex Steel S32205 Bar (UNS S32205) and Duplex Steel S32205 Rods of various sizes, dimensions, and standards at competitive market rates. These Round Bars are available in a variety of sizes from 5 mm to 500 mm, including Duplex Steel S32205 Forged Bar, Duplex Stainless Steel S32205 Hex Bar, Duplex Steel S32205 Bright Bar, Flat Bar, Hexagonal Bar, and Threaded Bar. If you do not find the size you are searching for, or if you require other types of round bars, please contact us.
These Duplex Steel S32205 Round Bars offer superior resistance to SCC, pitting, high strength, and crevice corrosion as compared to other stainless steel grades. Our Duplex Steel S32205 Square Bars are nitrogen-improved steels that were manufactured to combat common corrosion concerns encountered with 300 series stainless steels. Duplex Steel S32205 Flat Bars are a ferritic, two-phase, austenitic stainless steel with 3% molybdenum, 22% chromium, and 5% - 6% nickel alloy.
Specification Of Duplex S32205 Round Bars
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Hex Bar size | 2-100mm A/F |
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex S32205 | 1.4462 | S32205 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.5 – 3.5 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
