Our Products

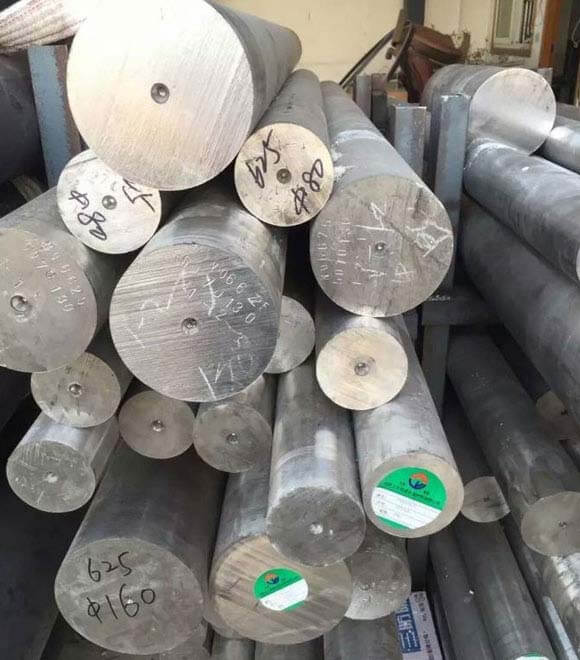

Duplex S31803 Round Bars
UNS S31803 Round Bar, DIN 1.4462 Rods
We are Manufacturer, Supplier & Exporter of UNS S31803 Duplex steel Bars. We deliver products that are retain their utility in all environments of use. Duplex 2205 Bars have a distinguished content of 22% Chromium, 3% Molybdenum and about 5-6% Nickel and are austenitic-ferritic stainless steels. Duplex Steel Bars are tough and more ductile in comparison to other austenitic grades. We export, manufacture, supply, and store Duplex Steel UNS S31803 Round Bars to clients all over the world at competitive prices. Duplex Steel UNS S31803 Bars offer significantly higher ductility and toughness than ferritic grades, but they fall short of the exceptional properties of austenitic grades.
Duplex Steel UNS S31803 Bars, Wires and Rods are well-known for their endurance and quality. Duplex Steel UNS S31803 Bars are annealed at 1020-1070 degrees Celsius (1868-1958 degrees Fahrenheit) and then water quenched. Duplex Steel UNS S31803 Rods are widely used in welded pipe, tubular components, chemical processing, transportation, and storage, among other applications.
Specification Of Duplex S31803 Round Bars
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Hex Bar size | 2-100mm A/F |
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex S31803 | 1.4462 | S31803 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
