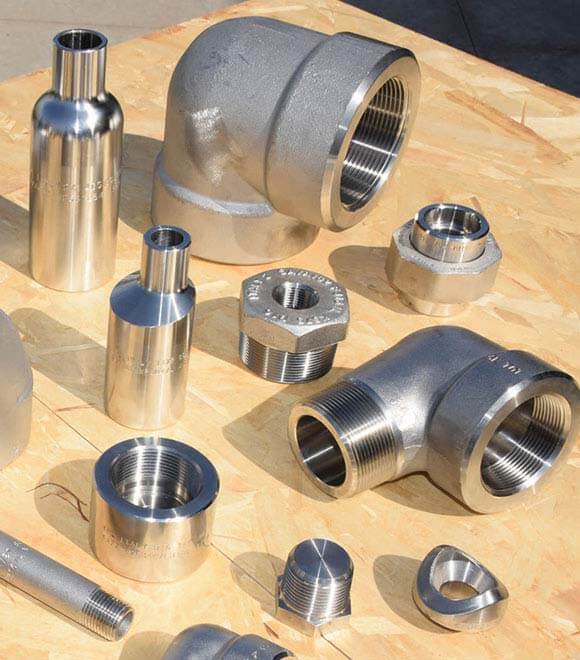

Super Duplex Steel S32760 Threaded Fittings
UNS S32760 Threaded Fittings, DIN 1.4410 Threaded Fittings
We are a manufacturer, supplier, and exporter of Super Duplex Steel S32760 Threaded Fittings (UNS S32760) and Super Duplex Stainless Steel S32760 Threaded Fittings in a variety of sizes, specifications, and standards at competitive market rates. Our Super Duplex Steel S32760 Threaded Fittings range from 1/8″ NB to 4″ NB and come in a variety of schedules, including threaded plugs, equal tees, unions, elbows, crosses, and threaded unions. If you do not find the size you are searching for, or if you require other types of threaded fittings, please contact us.
The high molybdenum, chromium, and nitrogen composition provides excellent resistance to chloride pitting and crevice corrosion attack, while the duplex structure provides Super Duplex S32760 Forged Threaded Cross with superior resistance to chloride stress corrosion cracking. It is worth noting that the strength of Super Duplex S32760 Forged Threaded Cap increases abruptly below 900 degrees Celsius. Meanwhile, we offer these Super Duplex S32760 Forged Threaded Fittings in a variety of sizes and forms to our customers.
Specification Of Super Duplex Steel S32760 Threaded Fittings
| Specifications | ASTM A182 / ASME SA182 |
|---|---|
| Size | 1/8″ NB to 4″ NB Screwed-Threaded |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Class | 2000lb/ 3000lb/ 6000lbs |
| From | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32760 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
