Super Duplex Steel S32760 Sheets Plates

UNS S32760 Plate, DIN 1.4410 Sheets

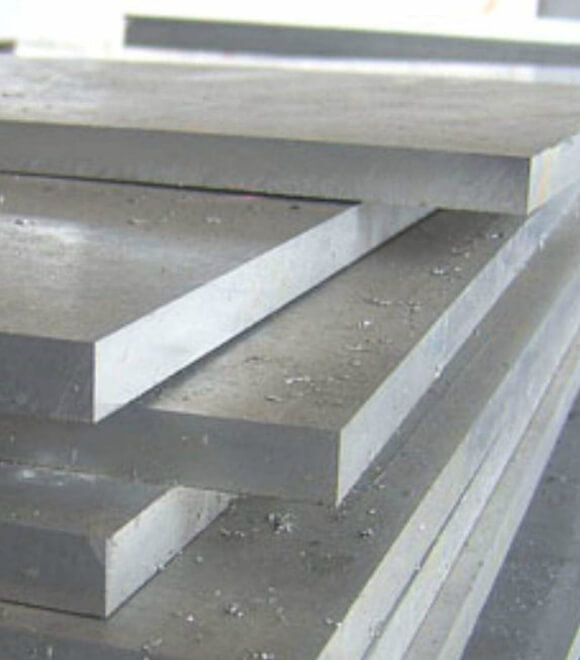

We are a manufacturer, supplier, and exporter of Super Duplex Steel S32760 Sheet & Plate (UNS S32760) and Super Duplex Stainless Steel S32760 Plates in a variety of sizes, specifications, and standards at competitive market pricing. Super Duplex Steel S32760 Perforated Plate, Super Duplex Steel S32760 Hot & Cold Rolled Sheets, Chequered Plates, and Polished Sheets are all available in pre-cut sizes starting at 0.5mm thickness. If you can't find the size you're searching for, or if you require other types of sheets and plates, please contact us.

Because of its high molybdenum, nitrogen, and chromium levels, Super Duplex S32760 Sheets have exceptional corrosion resistance to a wide range of media, including crevice corrosion and pitting in seawater and other chloride-containing atmospheres, as well as a Critical Pitting Temperature of more than 50 degrees Celsius. Super Duplex Stainless Steel UNS S32760 Sheets provide excellent weldability and mechanical strength. In addition, Super Duplex Steel UNS S32760 Plates are highly resistant to crevice corrosion and stress corrosion cracking.

Specification Of Super Duplex Steel S32750 Sheets & Plates

Specifications ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Super Duplex Steel S32760 1.4410 S32760

Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
Super Duplex Steel S32760 0.05 max 1.0 max 1.0 max 0.030 max 0.010 max 24.0 – 26.0 3.0 – 4.0 6.0 – 8.0 0.20 – 0.30

Mechanical Properties

Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
7.8 0.281 1350 2460
