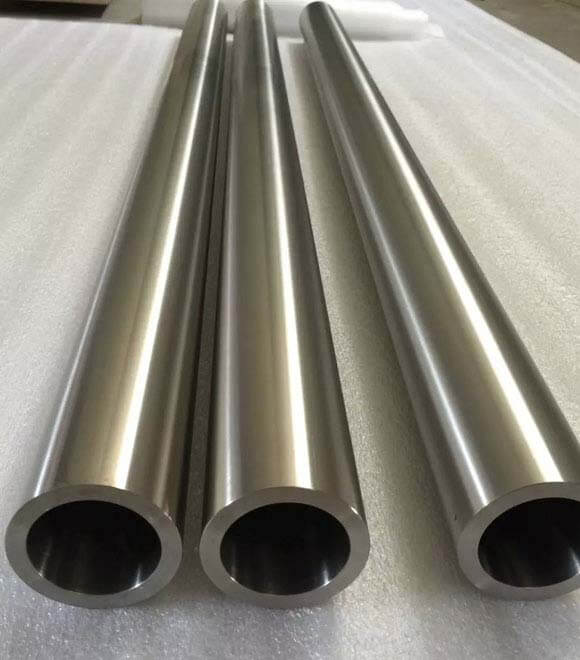

Super Duplex S32750 Pipe Tubes
UNS S32750 Pipes, DIN 1.4410 Pipes
We manufacture, supply, and export Super Duplex Stainless Steel UNS S32750 Pipes and Tubes, which are highly resistant to chloride stress corrosion cracking. Austenitic Stainless Steel Grade 2507 pipes provide significantly greater oxidation and strength resistance, making them more suitable for demanding applications. These pipes and tubes are extremely robust and have a solid design. Engineers and the world's best project consultants use Duplex Stainless Steel Pipe & Tubes in machined components, valves, machine tools, pump shafts, line pipe, oil and gas industry, dairy equipment, and surgical and medical parts. ASTM A789 Super Duplex Steel S32750 Tubes should be used for applications with temperatures below 600 degrees Fahrenheit (316 degrees Celsius).
Super Duplex Steel UNS S32750 Welded Pipes is a super duplex stainless steel designed for applications requiring high strength and corrosion resistance. Super duplex UNS S32750 pipes tubes are among the best. It is the preferred option among builders, engineers, and manufacturers.
Specification Of Super Duplex S32750 Pipes & Tubes
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Hex Bar size | 2-100mm A/F |
| Round bar size | Diameter: 3-~800mm |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Square bar size | 4 to 100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S32750 | S32750 | 1.4410 |
Chemical Composition
| S32750 | C | N | P | Si | Mn | Mo | Ni | Cr | S | Other |
| 0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | Cu:0.50 |
Mechanical Properties
| S32750 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
