Super Duplex UNS S32760 Flanges
UNS S32760 Flange, DIN 1.4410 Flanges

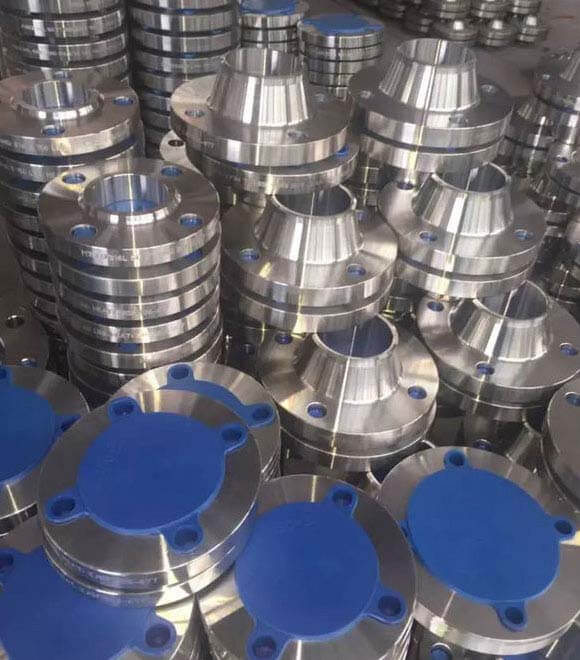

We are a manufacturer, supplier, and exporter of Super Duplex Steel S32760 Flanges (UNS S32760) and Super Duplex Stainless Steel S32760 Bridas of various sizes, specifications, and standards at competitive market prices. These Flanges are available in several schedules from stock 1/2" to 12" as Super Duplex S32760 Slip on Flange, Super Duplex Steel S32760 Blind Flange, SDSS S32760 Weld Neck Flanges, Spectacle Blind Flanges, and Socket Weld Flanges. If you do not find the size you are searching for, or if you require other types of flanges, please contact us.
We supply WNR 1.4410 Super Duplex Steel Weld Neck Flanges with matching stub-ends that can handle alkalis at high temperatures. Super Duplex UNS S32760 Reducing Flanges have a stronger microstructure as a result of additional Nitrogen, allowing for the manufacturing of thin and light-weight flanges that are easy on the wallet.
Specification Chart of Super Duplex Steel S32760 Flanges
| Specifications | ASTM A182 / ASME SA182 |
|---|---|
| Flanges size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Flanges Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, GOST Flange. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Manufacturing Standards | ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, BS Flange, EN Flange, API 6A Flange etc B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) Any other specilised Flange DIN: DIN 2527, DIN 2566, DIN 2573, UNS S45367 Flange, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 |
| Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Flanges uses & application | Nuclear power (mostly seamless). Petrochemicals and acids. Bitumen upgraders. Heavy oil refineries. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175. | |
Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex Steel S32760 | S32760 | 1.4410 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties
| Density | Melting Point | Tensile Strength, ksi | 0.2% Yield Strength, ksi | Elongation, % | Hardness Rockwell C |
| 7.8 (g/cm 3) / 0.281 (lb/in 3) | 1350 °C (2460 °F) | 116 min. | 80 min. | 15 min | 32 max. |
