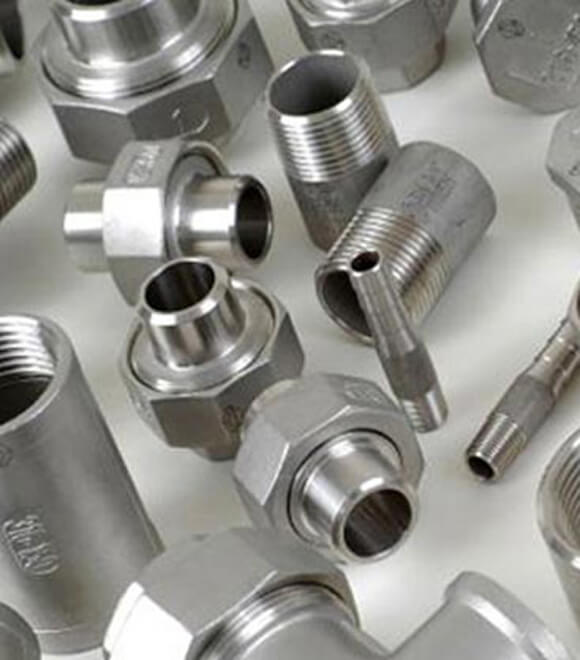

Nickel Alloy 200 Threaded Fittings
UNS N02200 Threaded Fittings, DIN 2.4066 Threaded Fittings
We manufacture, Suppler & Exporter of Nickel 200 Threaded Forged fittings that is supplied and exported all over the world. At the most attractive prices, our customized forged fittings are readily available to our privileged customers. The Threaded forged fittings are designed on the ASTM B366 and ASME SB 366 standards. They range from 15NB to 100NB in 3000LBS, 6000LBS, and 9000LBS available with NACE MR 01-75. Elbows, couplings, cross, tees etc. ASTM B564 Nickel Alloy 20 Threaded Forged Pipe Elbows are built intricately and it is known for its angular bent to fix two pipes in a similar manner. ASME SB 564 Nickel Alloy UNS N02200 Threaded Fittings have magnetostrictive properties, high thermal conductivities and low gas content.
Nickel DIN 2.4066 Threaded Fittings are often found to be used in synthetic fibre production, processes where sodium hydroxide is used, food processing and more. Typically, the elemental constraints of both Nickel 200 Forged Threaded Elbow (UNS N02200) and Nickel 201 Forged Fittings (UNS N02201) are merged into one dual-certified chemistry, yielding a single alloy with the desirable properties of both alloys.
Specification Of Nickel Alloy 200 Threaded Fittings
| 200 Pipes Specifications | ASTM B161, B517, B161, B516 / ASME SB161, SB517, SB161, SB516 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM B161 B161 200 Seamless Pipe & Tube Size | 1 / 2" NB - 16" NB |
| ASTM B161 B161 200 Welded Pipe & Tube Size | 1 / 2" NB - 24" NB |
| ASTM B517 B516 200 EFW Pipe & Tube Size | 6" NB - 24" NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Nickel Alloy 200 Pipes & Tubes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Nickel Alloy 200 Pipes & Tubes Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Nickel Alloy 200 Pipes & Tubes Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Nickel Alloy 200 Pipes & Tubes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Nickel Alloy 200 Pipes & Tubes | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ANSI B36.19 ASTM A 312 TP 200 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Nickel Alloy Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Nickel Alloy 200 Pipes & Tubes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
