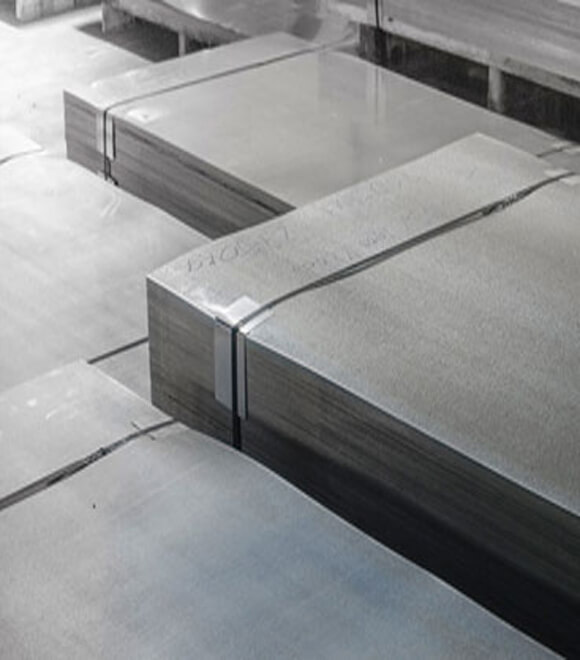

Nickel Alloy 201 Sheets Plates
UNS N02201 Plate, DIN 2.4068 Sheets
We are Manufacturer, Supplier & Exporter of Nickel Alloy 201 Sheets & Plates, which is durable in nature and ensures perfect fittings. Nickel 201 Sheets (UNS N02201) is often used in lead wires, battery components, transducers, sparking electrodes, and heat exchangers. Nickel 201 Plates is solid solution strengthened, commercially pure wrought materials. Our extensive assortment of Nickel 201 Plates is available in a variety of sizes and specifications to fulfill the needs of a wide range of sectors, including synthetic fiber production, aerospace, food processing, chemical processing, and operations that require sodium hydroxide or fluorine. These Alloy 201 Sheet Plates (UNS N02201) are commonly used in electronic parts, aerospace and missile components, handling equipment and food processing, rechargeable batteries, surgical equipment, and so on.
We offer these items in a variety of sizes, specs, and shapes to meet the demands of our customers. These Alloy 201 Sheets Plates are almost immune to inter-granular assault above 315 degrees Celsius, where chlorates should be kept to a minimum. The machinability of Alloy 201 Sheets Plates is substantially the same as Alloy 200. This Nickel 201 Structural is cold-rolled in suitable circumstances. We get raw materials for ASTM B162 Nickel Alloy 201 Sheets from reliable market sources.
Specification Of Nickel Alloy 201 Sheets & Plates
| Specifications | ASTM B127 / ASME SB127, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Size Range | Cold rolled Plate 0.5-6.4 mm Hot rolled Plate 3.0–10.0 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| International Standard | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) | EN 10258/ DIN 59381) EN 10151 EN 10088 |
| Finish | 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
