Nickel Alloy 200 Pipe Fittings

UNS N02200 Pipe Fittings, DIN 2.4066 Fittings

We are Manufacturer, Supplier & Exporter of Nickel 200 Pipe Fittings that are made from the purest quality Nickel, a metal known to be the most robust one, which is also alloyed with low Carbon for superior mechanical properties. Nickel 200 Butt Weld Pipe Fittings are created from high-quality standard raw materials and designed in accordance with national and international standards. Alloy 200 Butt Weld Pipe Fittings is extremely resistance to caustic alkalies up to and including the molten state. The extra-low carbon content of UNS N02200 Pipe Fittings gives virtual immunity to intergranular attack above about 315 Deg C (600 Deg F). These goods are well renowned for their exceptional strength and longevity. Our expert professionals employ high-quality raw materials, allowing pipe fittings to survive severe environments with ease.

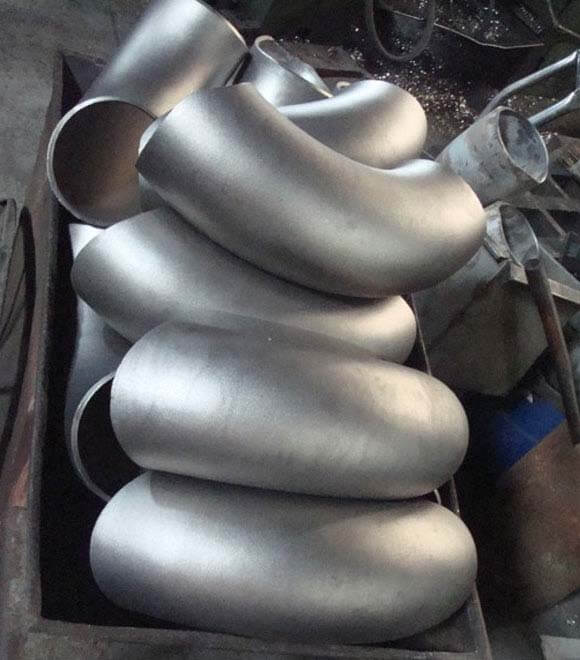

These pipe fittings are commonly utilized in a variety of applications and sectors, including oil refineries, textile industries, and fluid transportation businesses. Our Nickel 200 Elbow (UNS N02200) is a solid solution-strengthened, commercially pure wrought material with outstanding mechanical qualities across a wide temperature range and strong resistance to various corrosives, particularly hydroxides. These Nickel 200 Tee Pipe Fittings are commercially pure wrought nickel, and has good mechanical properties and excellent resistance to many corrosive environments.

Specification Chart of Nickel Alloy 200 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Nickel 200 N02200 2.4066 N-100M Ni 99.2 NW 2200 NA 11 НП-2

Chemical Composition

Nickel 200 Ni C Mo Mn Si Fe P S Cu Cr
99.0 min 0.15 max 0.35 max 0.1 max 0.4 max 0.01 max 0.25 max

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.9 g/cm3 1446 °C (2635 °F) Psi – 21500 , MPa – 148 Psi – 67000 , MPa – 462 45 %
