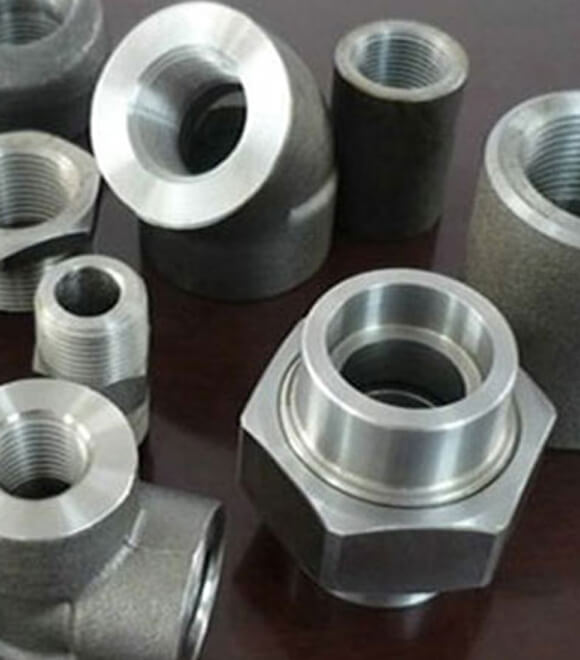

Monel K500 Threaded Fittings

UNS N05500 Threaded Fittings, DIN 2.4375 Threaded Fittings

We are Manufacture, Suplier & Export of Monel K500 Threaded Forged Pipe Fittings, which is further has approximately three times the yield strength and double the tensile strength when compared with Monel K500 Threaded Forged Pipe Fittings. These amplified properties in Monel K500 Threaded Forged Fittings, hardness and strength, are obtained by adding aluminium and titanium to the nickel-copper base and by a thermal processing used to effect precipitation, typically called aging or age hardening. There are a variety of forged pipe fittings that are created to make use of the amazing properties that it has to offer. Monel K500 Threaded Forged Tees Fittings consists of a small section of a pipe which is used for connection with a couple of other fittings. It is used to connect pipes which run at right angles to the main pipe.

On the other hand, the Monel K500 Threaded Forged Cross Fittings is used at the junction of four pipes and are either socket – welded or fitted with the help of female threading. We are proactive organization Specialist in Monel K500 Threaded Forged Pipe Elbows and Other Quality Products that meet and exceed customers specific requirements and thus ensure complete satisfaction. We are capable of providing a vast range of materials like Monel K500 Threaded Hexagonal Plug, Monel K500 Threaded Forged Pipe Fittings & Monel K500 Threaded Pipe Cross from stock, to suit your needs.

Specification Of Monel K500 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Monel K500 2.4375 N05500

Chemical Composition

Grade C Mn Si S Cu Fe Ni
K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
