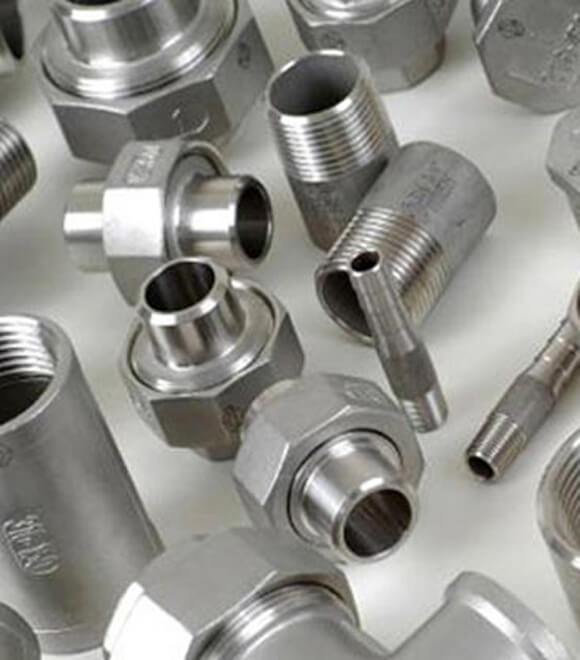

Monel 400 Threaded Fittings

UNS N04400 Threaded Fittings, DIN 2.4360 Threaded Fittings

We are Manufacture, Suplier & Export of Monel 400 Threaded Forged Pipe Fittings, which has high strength and can only be hardened by cold working. Alloy 400 Threaded Forged Fittings is low in strength in the annealed condition, so a variety of tempers may be used to increase the strength. Monel 400 Threaded Forged Threaded Fittings are stronger than pure Monel, and thus are resistant to corrosion by many agents, including rapidly flowing seawater. We offer these Fittings in different types such as Monel 400 Threaded Fittings, Monel 400 Threaded Forged Elbows, Moenl 400 Threaded Equal & Unequal Tees, Monel 400 Threaded Equal & Unequal Cross.

These Monel Alloy 400 Threaded Fittings is manufactured in various sizes, shapes, dimensions as per the needs of the clients. These forged fittings are utilized in a variety of industries, including gas processing, petrochemical, power generation, chemical processing, and the manufacture of seawater equipment.

Specification Of Monel 400 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Chemical Composition

Grade C Mn Si S Cu Fe Ni
 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
