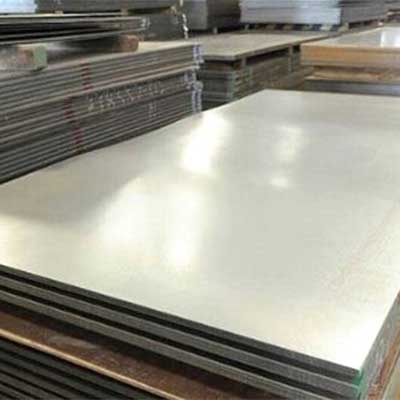

Monel K500 Sheets Plates

UNS N04400 Plate, DIN 2.436 Sheets

We are Manufacturer, Supplier & Exporter of Monel Alloy K500 Sheets, Plates Manufacturer & Supplier and Monel K500 Plate Exporter. We offer all of our products at extreme quality and economical price. Thence our goods and services have huge demand in the market, due to which we always maintain sufficient quantity of Monel K500 Sheets Stock. Monel K500 Sheets, Plates that are actually manufactured from High Quality of Standard Raw Materials and are designed as per with national and international standards. WNR 2.4375 Sheets are utilized in a variety of applications, including valve stems, springs, heat exchangers, screw machine products, wind instruments, and more.

Other uses for Alloy K500 Plates include in: bass strings, piping systems, trolling wire, fuel and water tanks, etc. Monel K500 Sheets (WN 2.4375) is a single-phase alloy and will exhibit only randomly disperse non-metallic inclusions. It is possibly the most resistant of all regularly used technical alloys, with outstanding resistance to hydrofluoric acid in all concentrations up to boiling point. Monel K500 Sheets and Plates are a nickel-copper composite that may be precipitation hardened using a combination of aluminum and titanium.

Specification Of Monel K500 Sheets & Plates

Specifications ASTM B127 / ASME SB127, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Monel K500 2.4375 N05500

Chemical Composition

Grade C Mn Si S Cu Fe Ni
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
