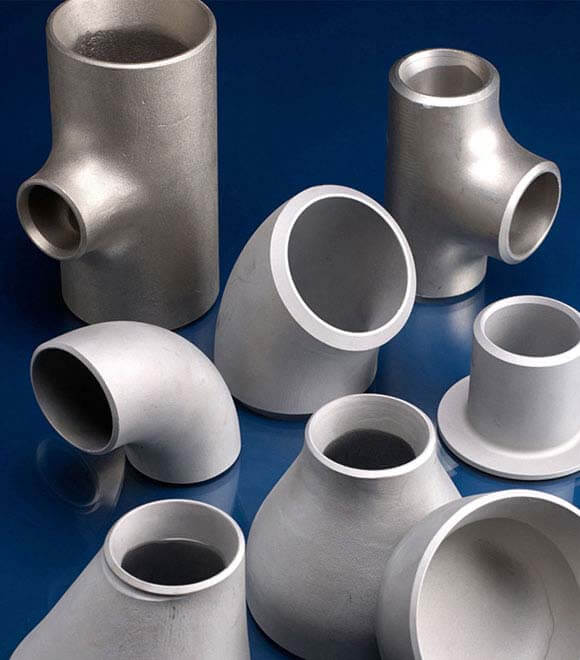

Monel K500 Pipe Fittings

UNS N05500 Pipe Fittings, DIN 2.4375 Fittings

We are Manufacturer, Supplier & Exporter of Monel K500 Butt Weld Fittings, Accesorios de tubería Monel K500 but slight war-page happens for the reason that of low heats and sluggish cooling rates tangled. Monel K500 Elbow Pipe Fittings is generally used in collars and mechanisms, oil well drill, pump shafts, impellers, non - magnetic housings, valves, safety lifts for oil & gas fabrication; sensors and other electronic related parts.

Monel K500 pipe fittings out perform Monel K500 in strength and hardness, enhanced by the precipitation hardening process, resulting in a tensile strength of 140,000 psi. Low permeability, Monel K500 butt weld pipe fittings, Our Monel K500 pipe fittings are used in oil and gas production units to join multiple pipes, and also provide excellent mechanical properties at sub-zero temperatures. Monel K500 elbow pipe fittings (UNS N05500) are the long-term hardenable version of the Monel 400 copper-nickel alloy.

Specification Chart of Monel K500 Pipe Fittings

Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size Seamless Fittings: 1/2" - 10"
Welded Fittings: 1/2" - 48"
Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Manufacturing Standards ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200
BS : BS4504, BS4504, BS1560, BS10
JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316
GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380
EN: EN10253-1, EN10253-2
Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Monel K500 N05500 2.4375 – – – – –

Chemical Composition

Monel K500 Ni C Al Mn Si Fe Cu S Ti Cr
63.0 min 0.25 max 2.3 – 3.15 1.5 max 0.5 max 05 – 2 27.0 – 33.0 0.010 max 0.35 – 0.85 –

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.44 g/cm3 1350 °C (2460 °F) Psi – 1,15,000 , MPa – 790 Psi – 1,60,000 , MPa – 1100 20 %


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
