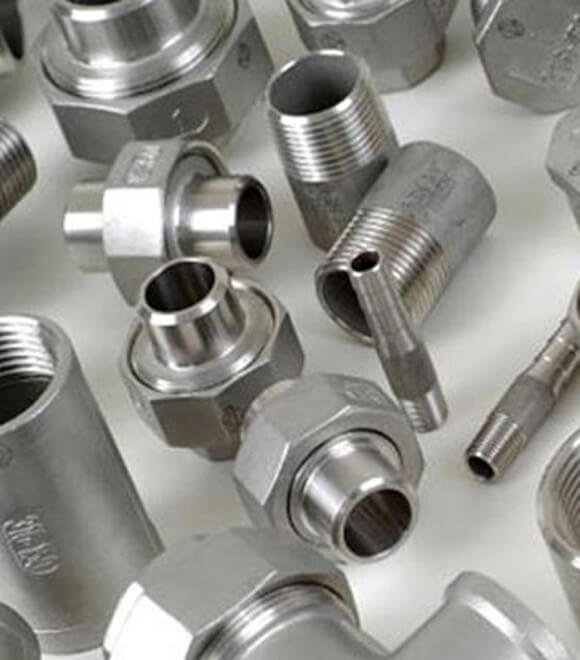

Inconel 825 Threaded Fittings

UNS N08825 Threaded Fittings, DIN 2.4858 Threaded Fittings

We are Manufacture, Suplier & Export of Incoloy 825 Forged Threaded Fittings, which exhibits outstanding performance in both acids and alkalis in oxidizing as well as reducing environments. Alloy 825 Forged Threaded Fittings has resistant to chloride-ion stress corrosion cracking, crevice corrosion and pitting. If exposed for long times to the sensitive temperature range 1200 Degree F – 1400 Degree F, Nickel Alloy 825 Forged Threaded Fittings may exhibit severe intergranular corrosion in certain very aggressive environments. Our WNR 2.4858 Incoloy 825 Threaded 90 deg Elbows are made up of added Copper and Molybdenum, enhancing their corrosion and oxidization resistant powers.

Incoloy 825 Threaded Cap to the oil and gas production centres and food processing industry for their pitting resistance and exceptional impact strength even at sub-zero temperatures. These Incoloy 825 Forged Threaded Fittings have some excellent features because of which these Forged Fittings are highly preferred in a huge number of industrial applications. These are cost effective as well as possess great mechanical strength.

Specification Of Incoloy 825 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo

Chemical Composition

Grade C Mn Si P S Cr Cu Ni Fe
Incoloy 825 0.05 max 1.00 max 0.5 max 0.030 max 19.50 – 23.50 1.50 – 3.00 38.00 – 46.00 22.00 min

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
