Inconel 800 Threaded Fittings
UNS N08800 / N08811 / N08810 Threaded Fittings, DIN 1.4958 / 1.4876 Threaded Fittings
We are Manufacture, Suplier & Export of Incoloy 800 / 800H / 800HT Threaded Fittings in INDIA since Three Decades. Mangalam Metal ranks in Top Ten company in INDIA engaged in manufacturing of Incoloy 800 Threaded Fitting. Mangalam Metal is ISO-9001:2008 certified organisation. Inconel 800 Threaded Fitting using high quality raw materials with the aid of latest techniques. Our Inconel 800 Forged Threaded Fittings are known for their key features like high tensile strength, strong, stable, corrosion and rust resistance as well as their high efficiency. We are proactive organization Specialist in Incoloy 800 Forged Threaded Pipe Elbows and Other Quality Products that meet and exceed customer`s specific requirements and thus ensure complete satisfaction.
We are capable of providing a vast range of materials like Incoloy 800 Forged Threaded Hexagonal Plug, Incoloy 800 Forged Threaded Pipe Fittings & Incoloy 800 Forged Threaded Pipe Cross from stock, to suit your needs.
Specification Of Incoloy 800 Threaded Fittings
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Size | 1/8″ NB to 4″ NB Screwed-Threaded |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Class | 2000lb/ 3000lb/ 6000lbs |

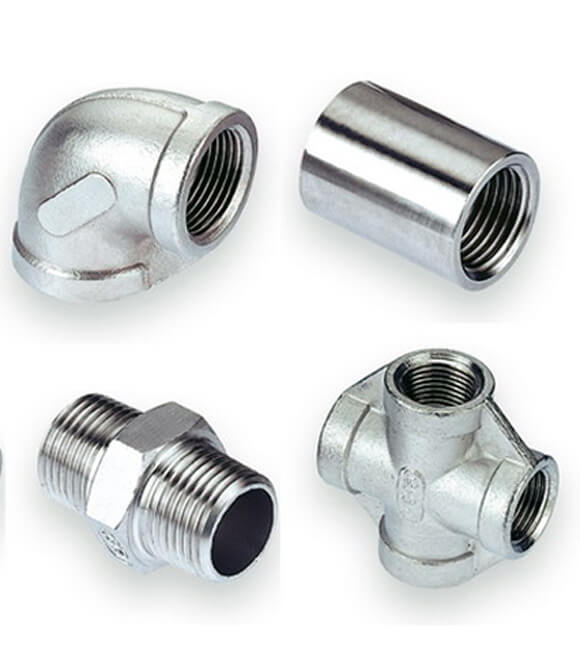

| From | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC32-21 | X5NiCrAlTi31-20 |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 |
Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Cu | Ni | Fe |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | – | 0.015 max | 19.00 – 23.00 | 0.75 max | 30.0 – 35.0 | 39.50 min |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | – | 0.015 max | 19.00 – 23.00 | 0.75 max | 30.0 – 35.0 | 39.50 min |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | – | 0.015 max | 19.00 – 23.00 | 0.75 max | 30.0 – 35.0 | 39.50 min |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
