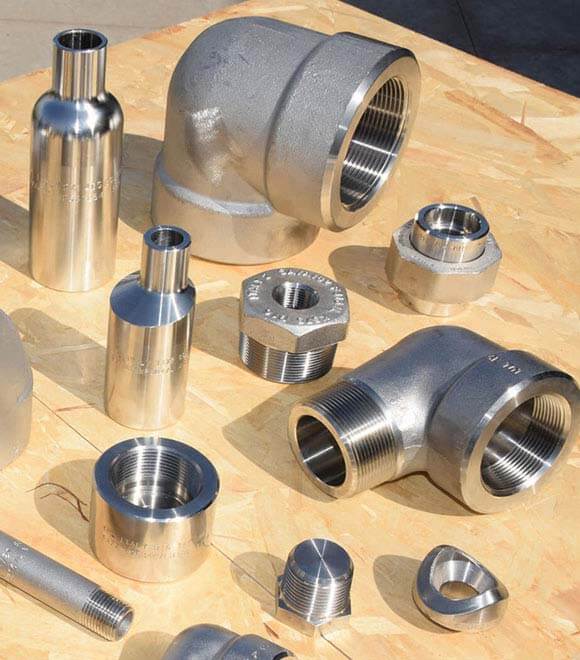

Hastelloy X Threaded Fittings

UNS N06002 Threaded Fittings, DIN 2.4665 Threaded Fittings

We are Manufacture, Suplier & Export of Hastelloy x Threaded forged fittings that is furnished in solution heat and it could be treated condition. Treatment of this Threaded forged fitting is at temperature of the 2150 Degree Fahrenheit. Experienced company can do lots of test to ensure their product quality like material testing, flattening test, intergranular corrosion test and positive material identification. Hastelloy X Forged Threaded Cross Fittings has phenomenal framing and welding qualities.Oxidation protection of Hastelloy X Forged Threaded Tee Fittings is astounding up to 2200 Degree F. Hastelloy X Forged Threaded Cap Fittings likewise has performed well in fly motor tailpipes, max engine thrust segments, lodge warmers, and other air ship parts. In the interim, these Hastelloy X Forged Threaded Bend Fittings are additionally being offered in redone sizes and shapes to our clients.

Common working temperatures of Hastelloy X Forged Threaded Coupling Fittings are 500 Degree F to - 20 Degree F. Our offer Hastelloy X Threaded Cross Forged Fittings is available in various sizes and thicknesses to meet all customer centric requirements, Alloy X Threaded Forged Couplings are suitable for usage in aqueous and low-temperature environments.

Specification Of Hastelloy X Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.



Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Hastelloy X 2.4665 N06002

Chemical Composition

Grade Ni Mo Cr Fe Mn C Co Si P S
X Balance 8.0 -10.0 20.50 – 23.00 17.00 – 20.00 1.00 max 0.05 – 0.15 0.50 – 2.50 1.00 max 0.04 max 0.03 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.22 g/cm³ 1355°C 655 MPa 240 MPa 35%
