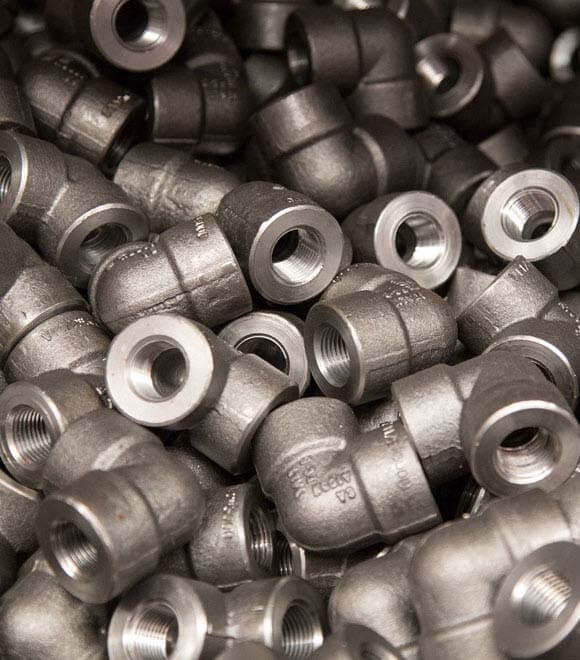

Hastelloy C276 Threaded Fittings

UNS N10276 Threaded Fittings, DIN 2.4819 Threaded Fittings

We are Manufacture, Suplier & Export of Hastelloy Alloy C276 Forged Threaded Fittings, which is available in variegated specifications which suits diverse requirements of our esteemed customers. Hastelloy C276 Forged Threaded Elbow Fittings (UNS N10276) has resisted the formation of grain boundary precipitates in the weld heat – affected zone, making it a candidate for most chemical and petrochemical processing applications in the as – welded condition. Hastelloy C276 Forged Threaded Tee Fittings has exceptional resistance to a wide variety of chemical environments. Hastelloy C276 UNS N10276 Forged Threaded Fittings has fabulous resistance to a wide assortment of compound procedure situations, including solid oxidizers, for example, ferric and cupric chlorides, hot contaminated media (natural and inorganic), chlorine, formic and acidic acids, acidic anhydride, and seawater and salt water arrangements.

Our company provides a wide range of Hastelloy C276 Threaded Forged Fittings to our global customers. We are extremely engaged in providing a well-crafted and broad spectrum of Hastelloy C276 Forged Threaded Fittings in India.

Specification Of Hastelloy C276 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 - NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ

Chemical Composition

Grade Ni C Mo Mn Si Fe P S Co Cr W V
Hastelloy C276 Balance 0.01 max 15 – 17 1.0 max 0.08 max 4 – 7 0.04 max 0.03 max 2.5 max 14.5 – 16.5 3 – 4.5 0.35 max

Mechanical Properties

Grade Ni C Mo Mn Si Fe P S Co Cr W V
Hastelloy C276 Balance 0.01 max 15 – 17 1.0 max 0.08 max 4 – 7 0.04 max 0.03 max 2.5 max 14.5 – 16.5 3 – 4.5 0.35 max


Application Industries

  • Hydrogenators
  • Lab Autoclaves
  • High Pressure Reactors
  • Agitators
  • Catalyst Filers
  • Mini Magnetic Coupling
