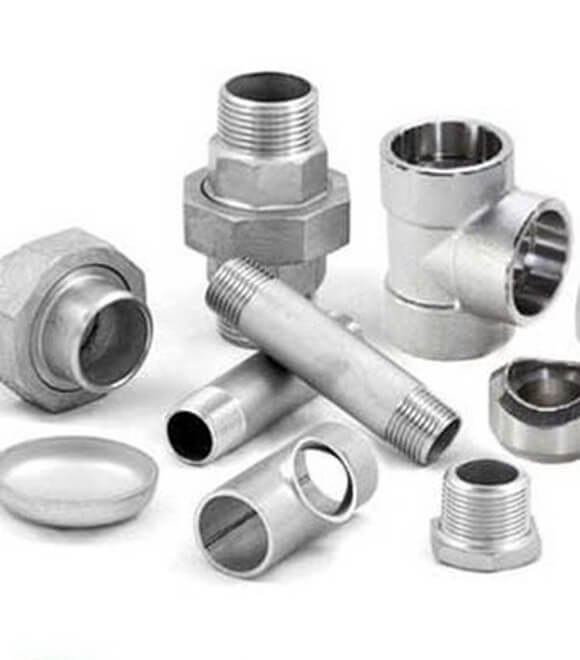

Hastelloy B3 Threaded Fittings

UNS N010675 Threaded Fittings, DIN 2.4600 Threaded Fittings

We are Manufacture, Suplier & Export of Hastelloy Alloy B3 Forged Fittings, which has good cold formability. We offer this product in different grades such as Hastelloy B2 Forged Fittings, Hastelloy B3 Forged Fittings and so on. Our Hastelloy B3 Forged Threaded Fittings is made from a nickel-iron-chromium alloy with additions of copper and molybdenum; where further it is a solution for stress corrosion cracking that can occur when stainless steel is introduced to chloride solutions. These Hastelloy B3 Forged Threaded Fittings is used for synthetic rubber manufacturing equipment, and so can be successfully cold formed using all common practices. Our offer Hastelloy B3 Threaded Cross Forged Fittings is available in various sizes and thicknesses to meet all customer centric requirements, Alloy B3 Threaded Forged Couplings are suitable for usage in aqueous and low-temperature environments.

Our Hastelloy B3 Forged Threaded Fitting products are made from high quality components. Hastelloy B3 Forged Threaded Tee Fittings additionally withstands sulfuric, acidic, formic and phosphoric acids, and other non-oxidizing media. Hastelloy B3 Forged Threaded Cross Fittings is a nickel – molybdenum composite with fantastic protection from setting, consumption and stress-erosion splitting, in addition to warm soundness better than that of amalgam B-2.

Specification Of Hastelloy B3 Threaded Fittings

Specifications ASTM B564 / ASME SB564
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.



Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Hastelloy B3 2.4600 N010675

Chemical Composition

Grade Ni Mo Cr Fe W Mn C Al Ti Si
Hastelloy B3 65.0 min 28.5 1.5 1.5 3.0 max 3.0 max 0.01 max 0.50 max 0.2 max 10 max

Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
9.2 g/cm3 1370 °C (2550 °F) Psi – 1,15,000 , MPa –760 Psi – 52,000 , MPa – 350 40%
