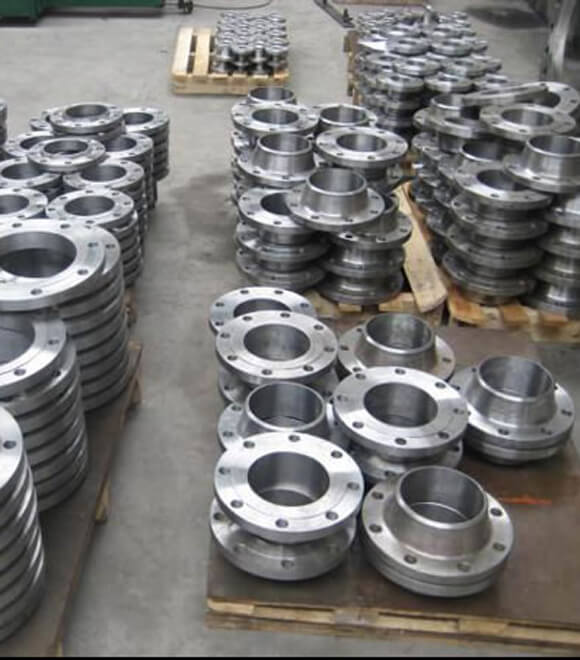

Hastelloy X Flanges
UNS N06002 Flange, DIN 2.4665 Flanges
We are Manufacturer, Supplier & Exporter of Hastelloy X Flanges, available in a variety or grades, materials, and finishes, in metric and inch sizes. We Specialize in Hastelloy X Flanges & Forged Fittings products for companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Steel and Aluminum Manufacturing, Utilities and Transportation, and Industrial Construction. Hastelloy Alloy X Flanges, which is appropriate for forming and welding. Hastelloy X Threaded Flanges (UNS N06002) has high quality up to 1500 Degree F (816 Degree C) and great oxidation resistance up to 2200 Degree F (1204 Degree C). Nickel, chromium, molybdenum and iron make these Hastelloy X Slip On Flanges one of the world's most popular proprietary alloys.
Hastelloy X Flanges are a nickel-chromium-iron-molybdenum superalloy with excellent high-temperature properties, oxidation resistance, and fabricability. Alloy X has incredible oxidation resistance up to 2200° F. Hastelloy X Flanges are available in a variety of configurations, including slip-on flanges, weld neck flanges, and threaded flanges. Hastelloy X Flanges have unique quality finishing and duress to provide long life, high pressure, and zero faults. The product differentiation is based on the superior finish of Hastelloy X Flanges with little roughness at the edges.
Specification Chart of Hastelloy X Flanges
| Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Flanges size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Flanges Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange, GOST Flange. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Manufacturing Standards | ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE, BS Flange, EN Flange, API 6A Flange etc B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) Any other specilised Flange DIN: DIN 2527, DIN 2566, DIN 2573, UNS S45367 Flange, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 |
| Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Flanges uses & application | Nuclear power (mostly seamless). Petrochemicals and acids. Bitumen upgraders. Heavy oil refineries. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175. | |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
Chemical Composition
| Grade | Ni | Mo | Cr | Fe | Mn | C | Co | Si | P | S |
| Hastelloy X | Balance | 8.00 – 10.00 | 20.50 – 23.00 | 17.00 – 20.00 | 1.00 max | 0.05 – 0.15 | 0.50 – 2.50 | 1.00 max | 0.04 max | 0.03 max |
Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35% |
