Duplex Steel S32205 Threaded Fittings

UNS S32205 Threaded Fittings, DIN 1.4462 Threaded Fittings

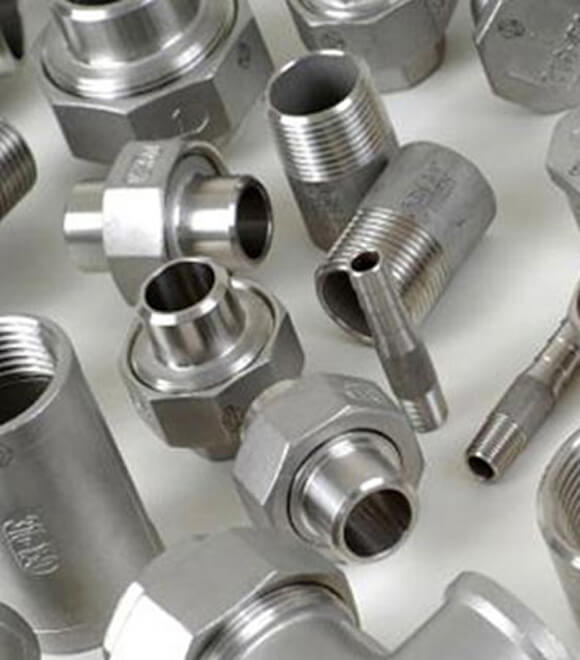

We are a manufacturer, supplier, and exporter of Duplex Steel S32205 Threaded Fittings (UNS S32205) and Duplex Stainless Steel S32205 Threaded Fittings in a variety of sizes, specifications, and standards at competitive market pricing. Duplex Steel S32205 Threaded Fittings are available in a range of sizes from 1/8″ NB to 4″ NB, including Threaded Plugs, Threaded Equal Tees, Duplex Stainless Steel S32205 Threaded Unions, Threaded Elbows, Threaded Crosses, and Threaded Unions. If you don't find the size you're searching for, or if you require other types of threaded fittings, please contact us.

Duplex Steel S32205 Forged Threaded Cross is often used in Marine Industry and Shipbuilding: such as in Propellers and Shafts, Rudders, Shaft Seals, Pumps, Bolts and Fasteners, Valves, Instrumentation, Oil and Chemical Tankers. Meanwhile, these Duplex Steel S32205 Forged Threaded Cap are also being offered in different sizes and shapes to our customers. Even when the equipment has sufficient power, allowance must be made for higher spring – back caused by the high strength of Duplex Steel S32205 Forged Threaded Fittings.

Specification Of Duplex Steel S32205 Threaded Fittings

Specifications ASTM A182 / ASME SA182
Size 1/8″ NB to 4″ NB Screwed-Threaded
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Class 2000lb/ 3000lb/ 6000lbs
From 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, Unions, Equal Tees & Reducing Tees, Plugs.

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Duplex 2205 1.4462 S32205

Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 – 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

Mechanical Properties

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32205 7.805 0.285 1420 – 1465 2588 – 2669
