Duplex S32205 Sheets Plates

UNS S32205 Plate, DIN 1.4462 Sheets

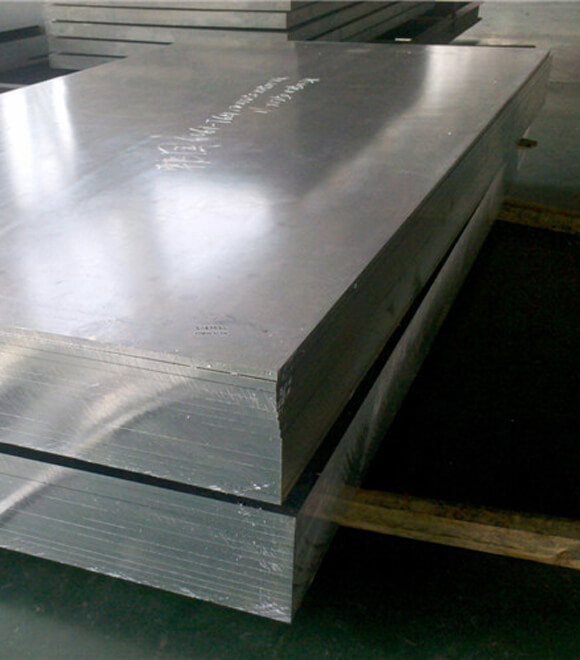

We are Manufacturer, Supplier & Exporter of Duplex Steel S32205 Sheet & Plate (UNS S32205), Duplex Stainless Steel S32205 Plates in various sizes, dimensions and standards at market leading prices. These Sheets & Plates from thickness 0.5mm in various pre-cut sizes from stock, Duplex Steel S32205 Perforated Plate, Duplex Steel S32205 Hot & Cold Rolled Sheets, Chequered Plates, Polished Sheets. If you do not find the size you are looking for or if you need Other Type of Sheets & Plate please do contact us.

The ability to resist sulfide push consumption breaking in mash plants and oil fields makes WNR 1.4462 Duplex Steel Plates advantageous; they also resist corrosion produced by blanching processes. Duplex Steel UNS S32205 Plates are commonly used in pulp and paper digesters, liquor tanks, paper machines, and oil and gas exploration and processing equipment.

Specification Of Duplex S32205 Sheets & Plates

Specifications ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
Dimension Standard MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range Cold rolled Plate 0.5-6.4 mm
Hot rolled Plate 3.0–10.0 mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness 0.3 mm to 120 mm
International Standard ASTM A480
ASTM A959
ASME IID
EN ISO 9445
EN ISO 18286
EN 10051
EN 10088-1
ISO 15510
Tolerances (width / thickness) EN 10258/ DIN 59381)
EN 10151
EN 10088
Finish 2B, 2D, BA NO (8), Cold rolled Plate (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Dealers & Distributor of SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material
Profiling Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting

Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Duplex S32205 1.4462 S32205

Chemical Composition

Grade C Mn Si P S Cr Mo Ni N Fe
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min

Mechanical Properties

Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S32205 7.805 0.285 1420 – 1465 2588 – 2669
